The Performance Introduction of ICEUPS edible cube ice machine
★ ICEUPS edible ice machine has the domestic first technology of adjusting automatically the ice size,and
combined with other leading technology of automatic replenishment,automatic deicing,completely solved
the problems of uneven thickness cube ice and difficult drop caused by ambient temperature changing and
water pressure differ.
★ There are two technologies application of flat wall heat exchanging and recycling heat ice off ,more save
energy and increase dramatically ice production.
★ All accessories of ice machine are world brands,they are controlled automatically by the computer,the
ice machine is elegant by integrated design,the body is sus304 stainless steel to meet the hygiene
requirements of foods grade.
The Features of ICEUPS edible cube ice machine
★ The Ice production is large,it is range from 30kg to 20tons per day so to meet the user
requirements.Different temperature is different ice production,the ice production can reach 90%~95% under
ambient temperature<35℃ and water temperature<25℃, or reach 97%~100% under ambient
temperature<20℃ and water temperature<15℃.
★ Low power consumption:power consumption is 84~89kw/T under ambient temperature<35℃ and water
temperature<25℃,or power consumption is 69~83kw/T under ambient temperature<20℃ and water
temperature<15℃.the ice machine save energy more 6% than other similar productions.
★ The computer control automatically: by using PLC programming to adjust the thickness and size of cube
ice, to auto-sense the ambient temperature and water temperature,it can automatically make ice&put off
ice supply water when no person.

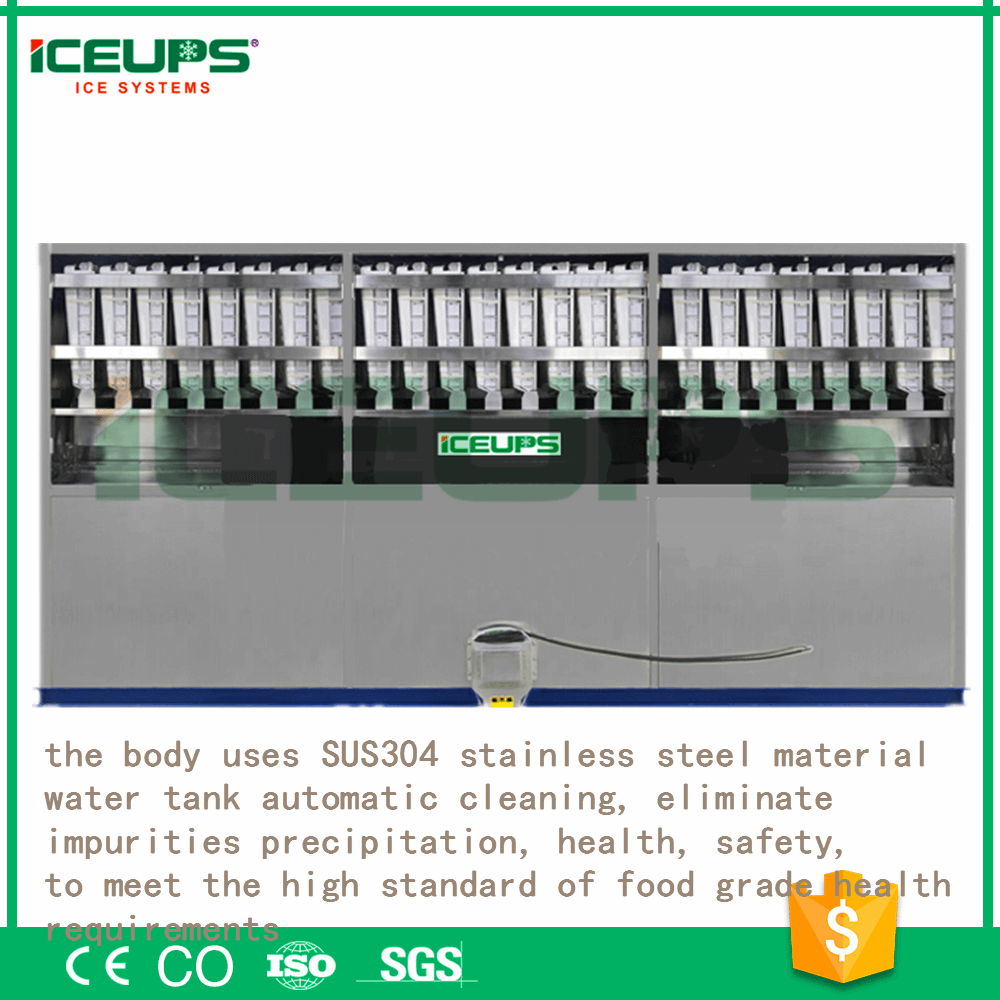

★ Safety and Health: all are sus304 stainless steel,the system automatic wash the sink and prevent the
precipitation of impurities.Health and safety meet the high standard hygiene requirements of foods.
★ Features of cube ice:clean,hard,thick,uniform size,clear chestnut,nice and character,they meet the world
health standards of edible ice.
The Application Range of ICEUPS edible cube ice machine
★ ICEUPS edible cube ice are used in hotels,bars,cafes,restaurants,fast food shops,convenience
storage,cold stores and home etc.
★ Cube ice size：22mm*22mm*22mm ，29mm*29mm*22mm;
★ Power system:standard voltage 3P～50HZ～380V，it also can be other voltage 200v/220v/400v/415v/440v/460v/480v-50hz/60hz-3p
★ Operating condition：Water inlet temperature 21℃,Ambient temperature 25℃，Evaporating
temperature-25℃，Condensing temperature 40℃.
★ Ice Capacity：the actual production of ice will be changed due to the impact of water&ambient
★ The data of technical innovation will update,we will reflect them in the quotation solution.
