The Performance Introduction of ICEUPS Tube Ice Machine
★ ICEUPS tube ice machines are composed ice evaporator,liquid storage tank,steam valve,control
cabinet,various valves and connections pipeline so on.Main part is the ice evaporator.
★ The body is vertical tube type，numbers of heat transfer tubes through the up&down of tube plate,the
top and bottom each have one water tank.the refrigerant evaporate in the inner of evaporator during
freezing and absorb heat from water in the inner wall of heat tube.
★?Water in frozen into ice attached to the inner tube wall. The heat vapor go into the evaporator housing
when the thickness of ice is enough,then Ice from inner tube are off, then continuously discharged排出
along the outlet.
★?The Ice production time is 20 minutes,the Ice off time is 1~3minutes, both time can be adjusted.

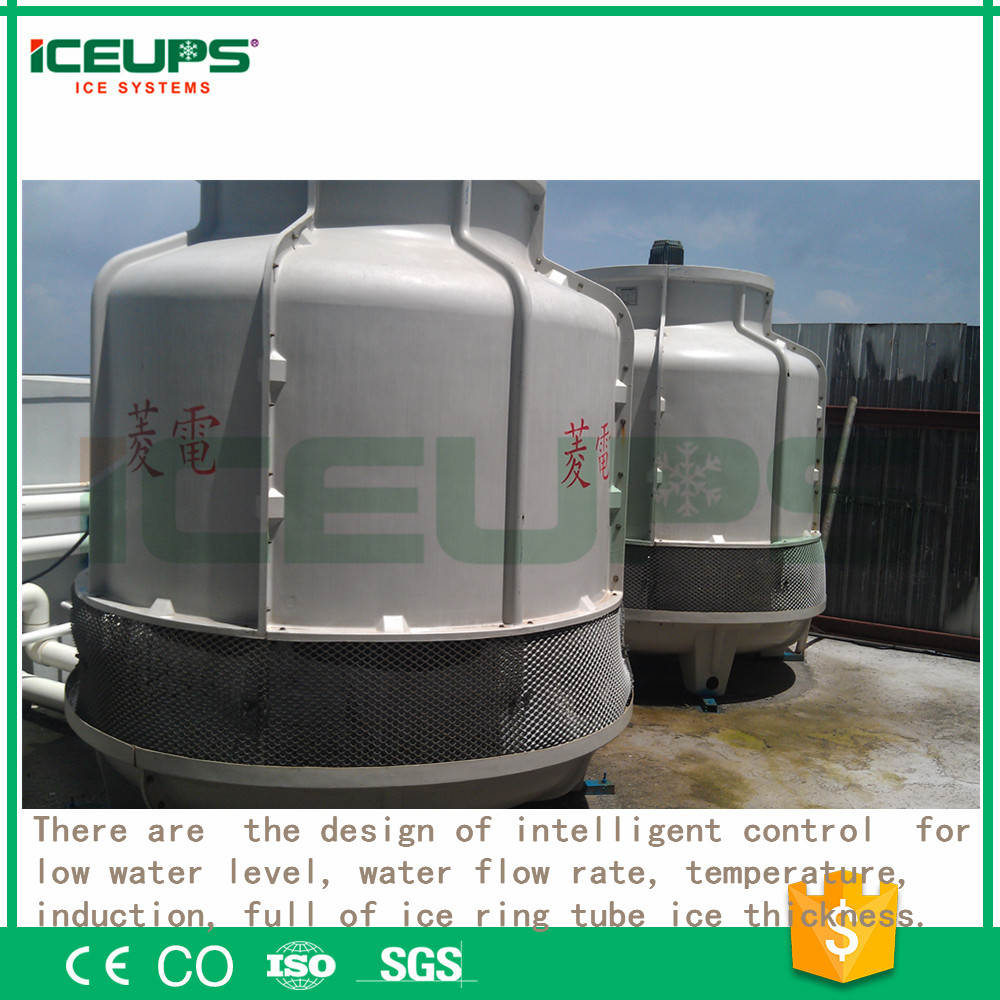

★?Tube ice machine is equipped with the intelligent program parts，such as low water level,water flow,ice-
full sensor,high&low pressure and so on,then the ice machines are more stable and secure,it is more
convenient operation and maintenance.
The Features of ICEUPS Tube ice machine
★ Tube ice is hollow cylindrical shape,the outer diameter has variety of specifications: ? 20,?22,? 28,?
29,?35,? 40 mm.the length ranges from 30 to 50mm, the bore diameter can be adjusted by the ice making
time, it is limited within ? 5～10mm.

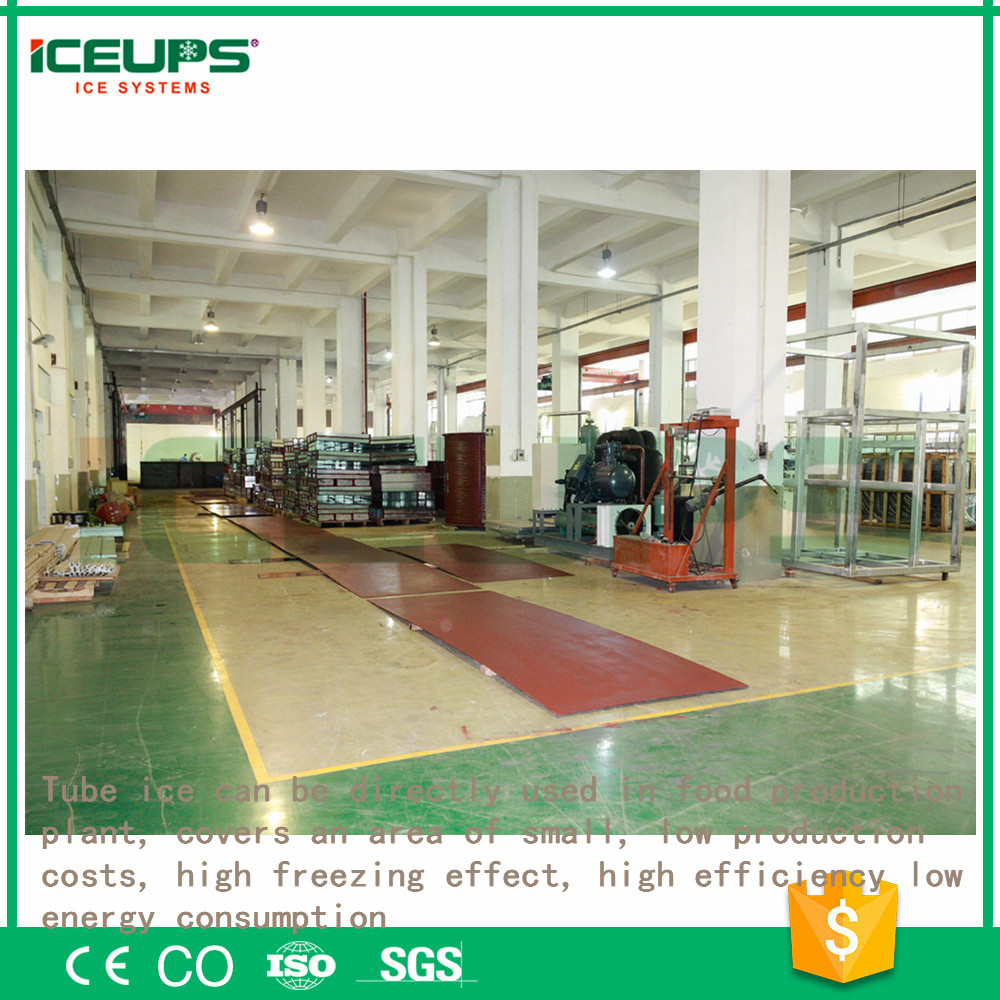

★ The frame material is 304 stainless steel, tube ice machine cover small area and can be directly put into
the food production workshop,the production cost is low,the freezing effect is nice and save energy and
consumption,the installation time is short,the operation is convenient.
★Tube ice is thick,transparent ,beautiful and good permeability, don’t easy to melt.
★The main purpose:daily edible,fresh vegetable,fishing&aquatic products preservation,chemical
processing,civil engineering and other places where to need ice so on.
The Application ranges of ICEUPS Tube Ice Machine

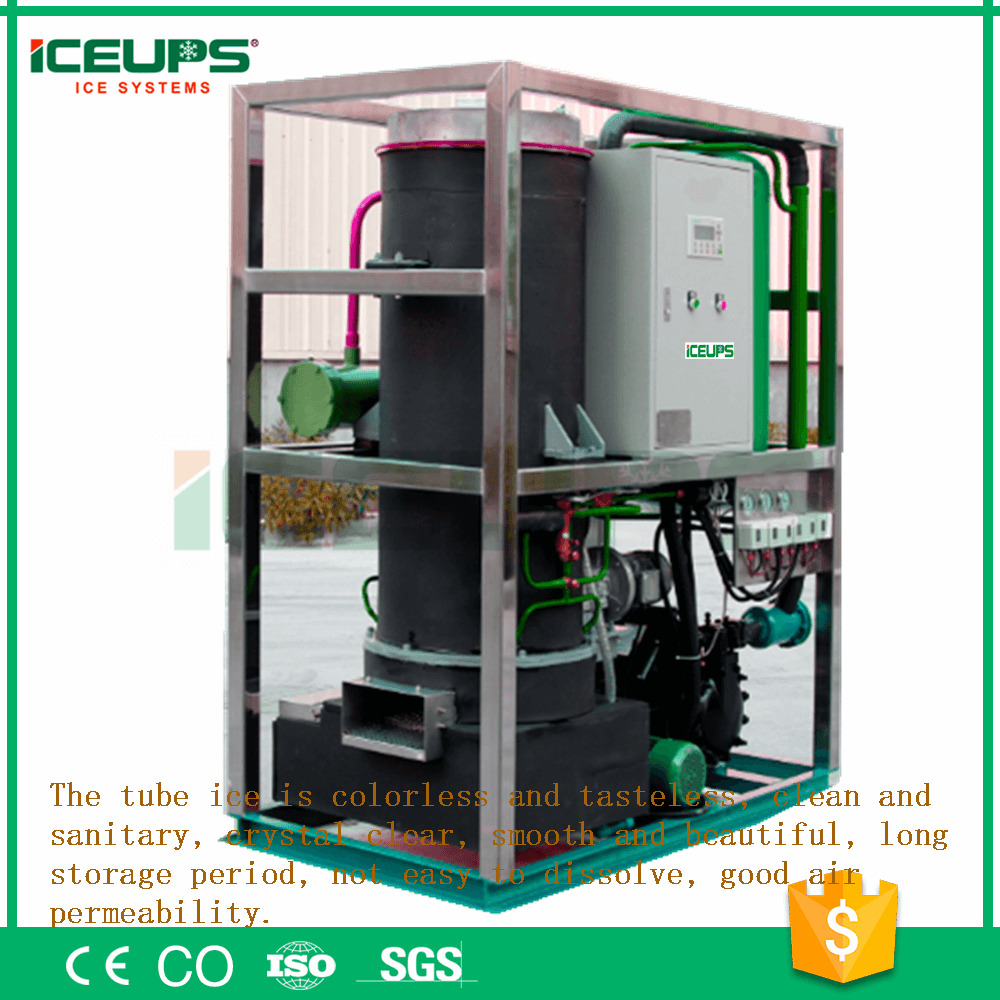

★ ICEUPS tube ice is colorless,odorless,clean,hearth,crystal clear,smooth and beautiful,long storage
time,don’t easily dissolve,breathable,tube ice can be eaten directly and apply for modulating drinks,cold
foods,frozen drinks,snacks,aquatic processing and industrial cooling etc.
★ Power system: standard voltage 380v-3p-50hz, it can be changed by local electrical system from other
countries,such as 220v/415v/440v/460v/480v-3p-50hz/60hz
★ Work condition:water inlet temperature 21℃,ambient temperature 25℃,evaporating
★ The data of technical innovation will update,we will reflect them in the quotation solution.
