    Products Product Details
  • Your location: Home PRODUCTS Tube ice machine > Samll ice machine
  • product name: KMG-2T
    Listing Date:2016-10-10
  • KMG-2T KMG-2T
  • Features
  • Parameters
  • Application
  • Reminder
  • ?KMG-2T

    ?

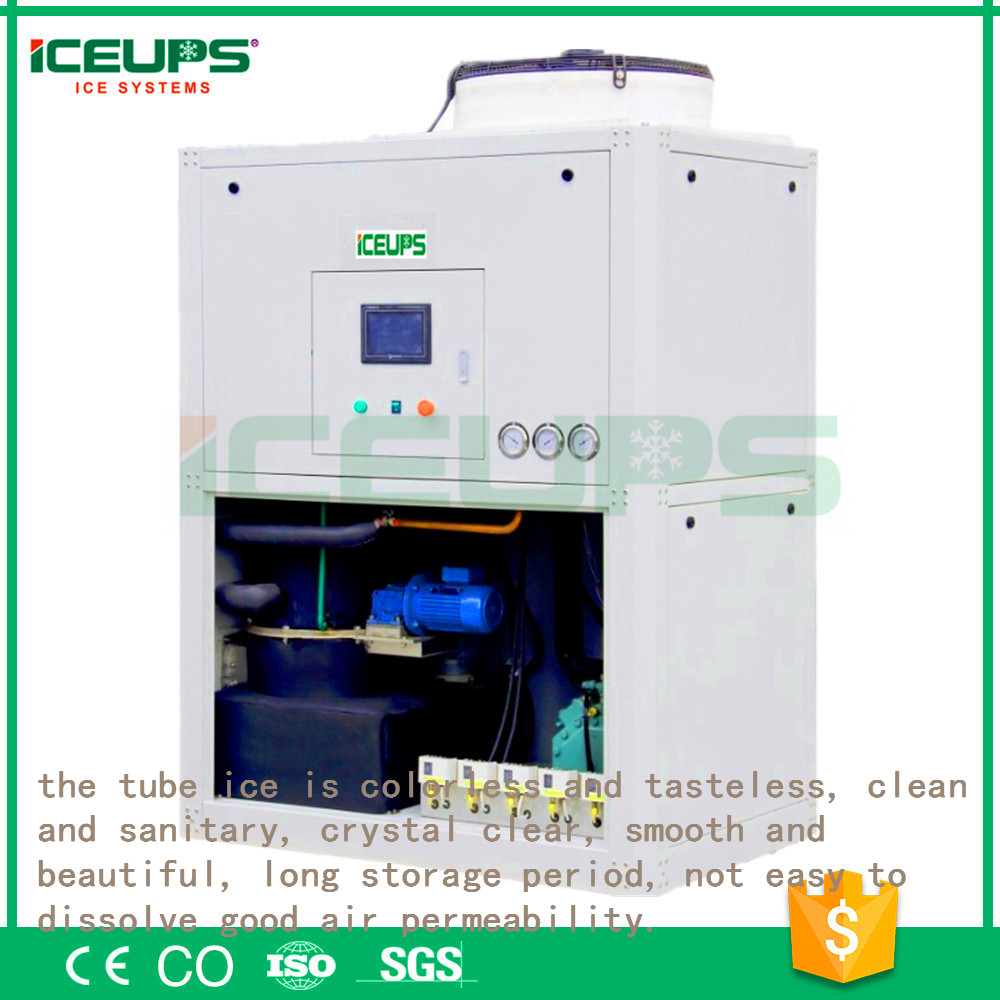

    The Performance Introduction of ICEUPS Tube Ice Machine

    ICEUPS tube ice machines are composed ice evaporator,liquid storage tank,steam valve,control

    cabinet,various valves and connections pipeline so on.Main part is the ice evaporator.

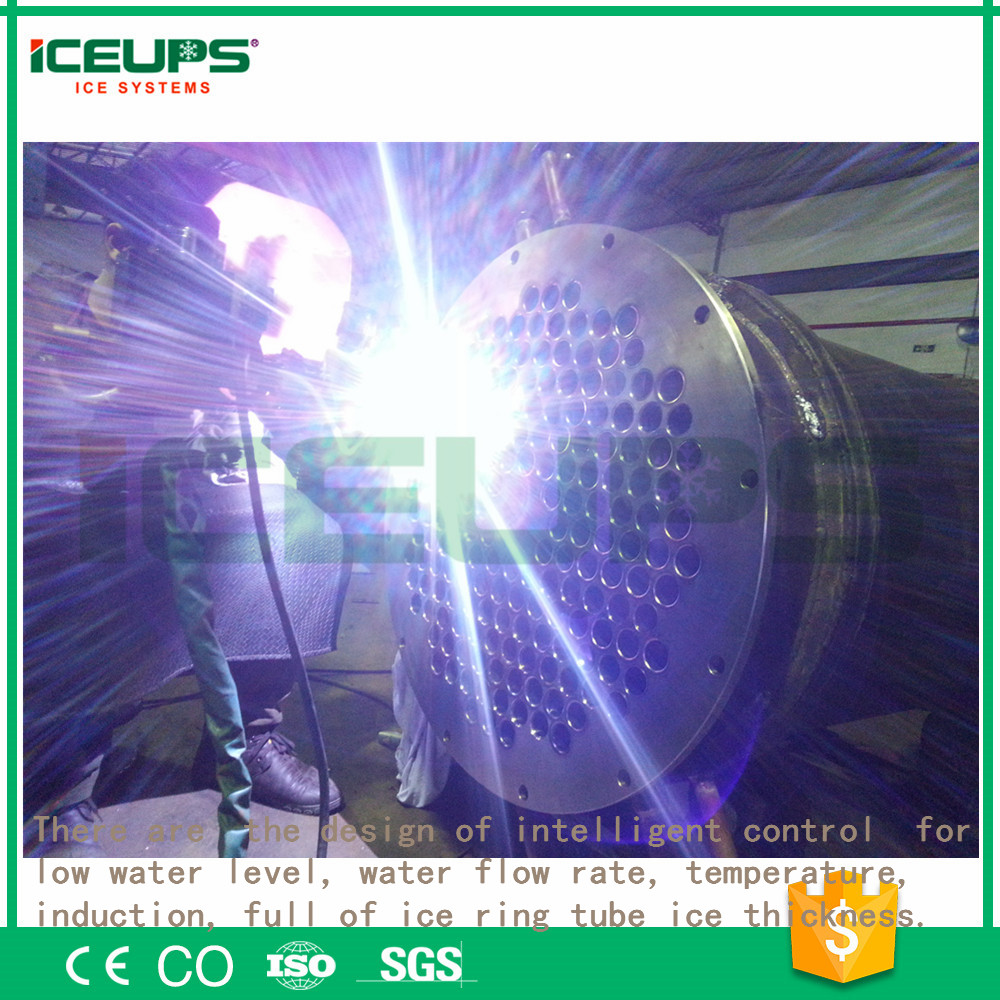

    The body is vertical tube type,numbers of heat transfer tubes through the up&down of tube plate,the

    top and bottom each have one water tank.the refrigerant evaporate in the inner of evaporator during

    freezing and absorb heat from water in the inner wall of heat tube.

    ?Water in frozen into ice attached to the inner tube wall. The heat vapor go into the evaporator housing

    when the thickness of ice is enough,then Ice from inner tube are off, then continuously discharged排出

    along the outlet.

    ?The Ice production time is 20 minutes,the Ice off time is 1~3minutes, both time can be adjusted.

    ?Tube ice machine is equipped with the intelligent program parts,such as low water level,water flow,ice-

    full sensor,high&low pressure and so on,then the ice machines are more stable and secure,it is more

    convenient operation and maintenance.

    ?KMG-2T

    ?

    The Features of ICEUPS Tube ice machine

    Tube ice is hollow cylindrical shape,the outer diameter has variety of specifications: ? 20,?22,? 28,?

    29,?35,? 40 mm.the length ranges from 30 to 50mm, the bore diameter can be adjusted by the ice making

    time, it is limited within ? 5~10mm.

    The frame material is 304 stainless steel, tube ice machine cover small area and can be directly put into

    the food production workshop,the production cost is low,the freezing effect is nice and save energy and

    consumption,the installation time is short,the operation is convenient.

    Tube ice is thick,transparent ,beautiful and good permeability, don’t easy to melt.

    The main purpose:daily edible,fresh vegetable,fishing&aquatic products preservation,chemical

    processing,civil engineering and other places where to need ice so on.

    ?KMG-2T

    ?

    The Application ranges of ICEUPS Tube Ice Machine

    ICEUPS tube ice is colorless,odorless,clean,hearth,crystal clear,smooth and beautiful,long storage

    time,don’t easily dissolve,breathable,tube ice can be eaten directly and apply for modulating drinks,cold

    foods,frozen drinks,snacks,aquatic processing and industrial cooling etc.

    Power system: standard voltage 380v-3p-50hz, it can be changed by local electrical system from other

    countries,such as 220v/415v/440v/460v/480v-3p-50hz/60hz

    Work condition:water inlet temperature 21℃,ambient temperature 25℃,evaporating

    temperature:-25℃,Condensing temperature:40℃

    The data of technical innovation will update,we will reflect them in the quotation solution.

    ?

    ?

    ?

    ?

    KMG-2T

    KMG-2T

    KMG-2T

    ?

    KMG-2T?

    ?

    ? It is suitable for fresh vegetables,fresh aquatic products,hotel bars and entertainment areas etc.

    ? It can directly eaten and used in the modulation drinks,iced food,frozen drinks,snacks,aquatic products

    processing and industrial cooling etc.

    ?
