    Products Product Details
    product name: KMC-20T
    Listing Date:2016-10-10
  • KMC-20T KMC-20T
  • Features
  • Parameters
  • Application
  • Reminder
  • ?KMC-20T

    ?

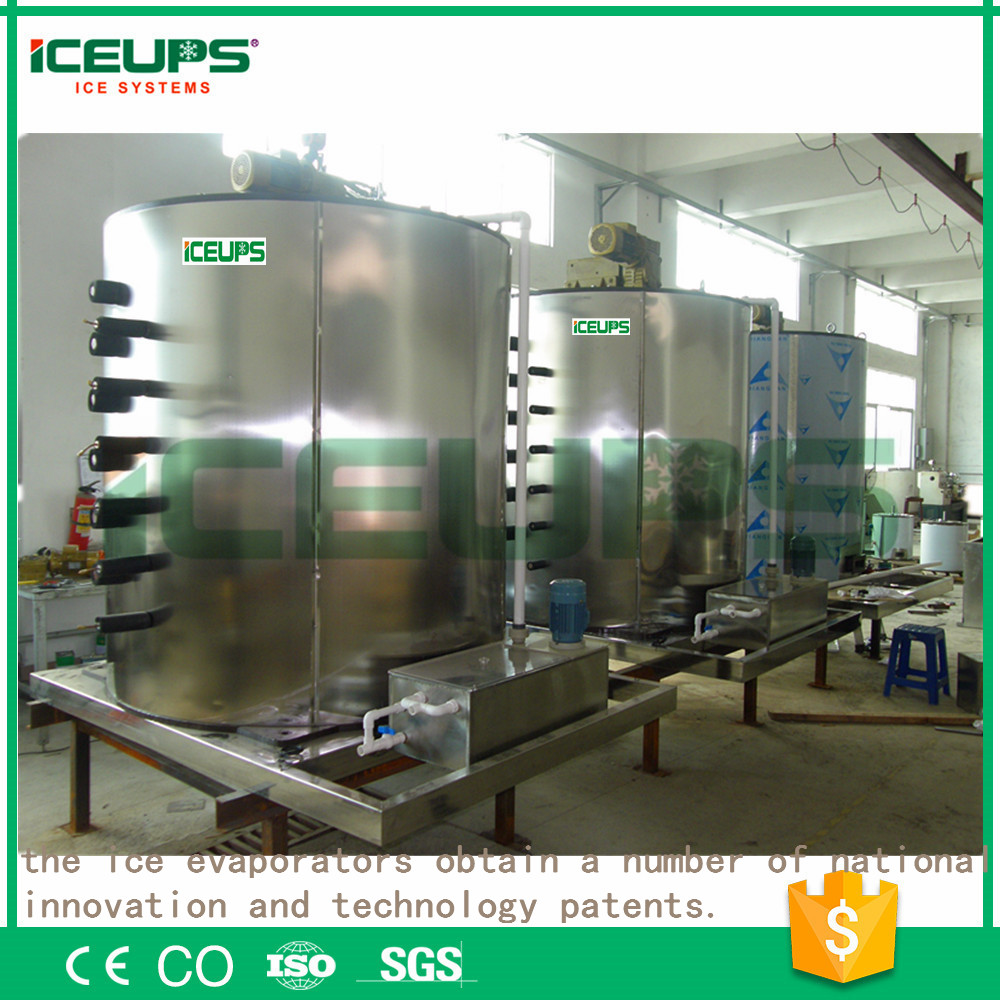

    The Performance Introduction of ICEUPS Ice Machine Evaporator

    Ice Evaporator: ICEUPS Evaporators are used by stationary vertical designing,the scraping ice in the

    inner:the evaporator don’t move and the ice skate is rotating scraping in the inner wall.

    This design reduces wear,strong sealing,it effectively prevent the leakage of refrigerant.By using high-

    quality 304 stainless steel and automatic argon fluorine welding technology to enhance its strength and

    precision.

    Ice skate: It’s spiral hob,less resistance,low loss,no noise and scraper ice evenly.

    The Refrigeration unit: include compressor,condenser,Gas&Liquid separator, oil filter,Liquid storage tank

    and expansion valves,the energy efficient refrigeration system have several patent technologies in the

    industry.

    The microcomputer intelligent control: Refrigeration System is intelligently controlled by microcomputer.

    It can feedback the faults from water shortage,reverse,full ice,ice scraper,high&low pressure to PLC

    program, and then display on the electric control touch screen after automatically processed by the

    microcomputer, that is man-machine integration design as so to let operation and maintenance easy.

    ?KMC-20T

    ?

    The Features of ICEUPS Ice Machine Evaporator

    ICEUPS Ice Evaporator use the intelligent design, it is stable,efficient energy and maintain easily.

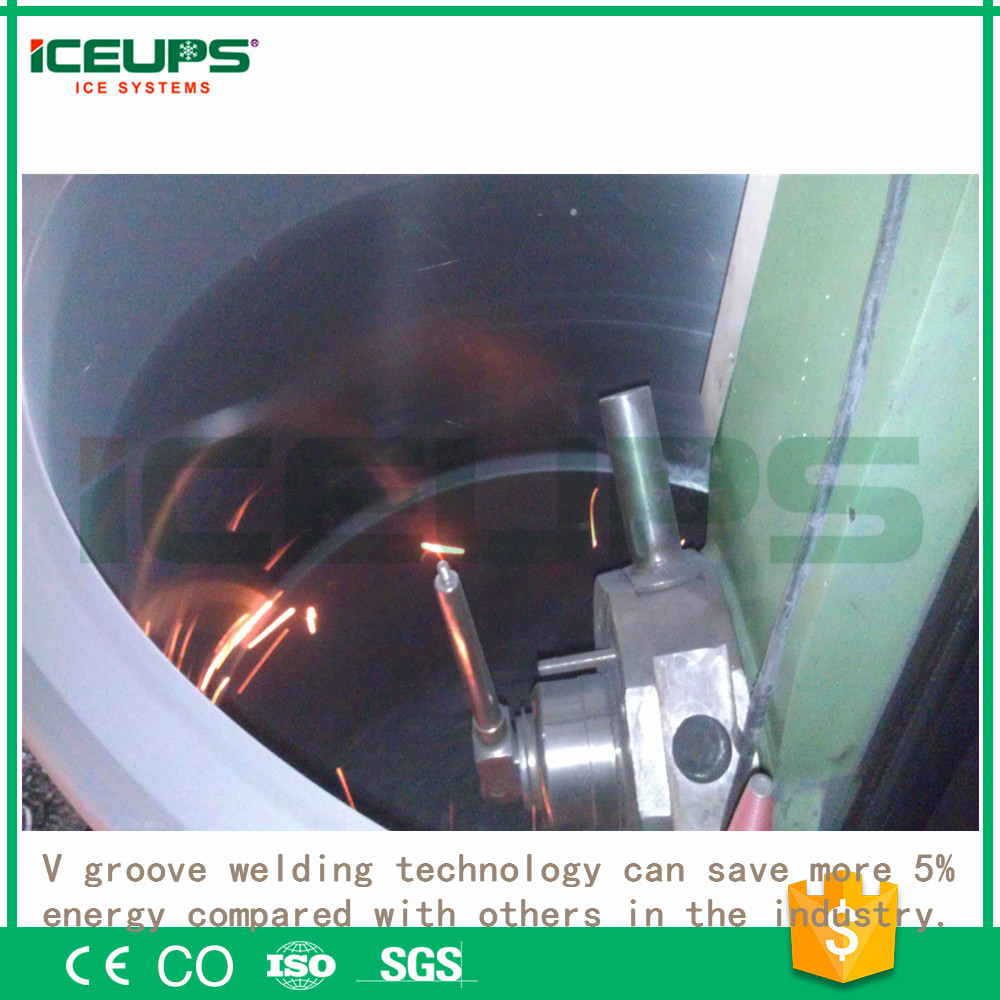

    Ice Evaporators are made by SUS304 stainless steel or Chromed-carbon steel,internal spiral groove

    design,V groove welding technology, it saves 5%~8% energy more than the same type of energy-saving

    equipment industry.

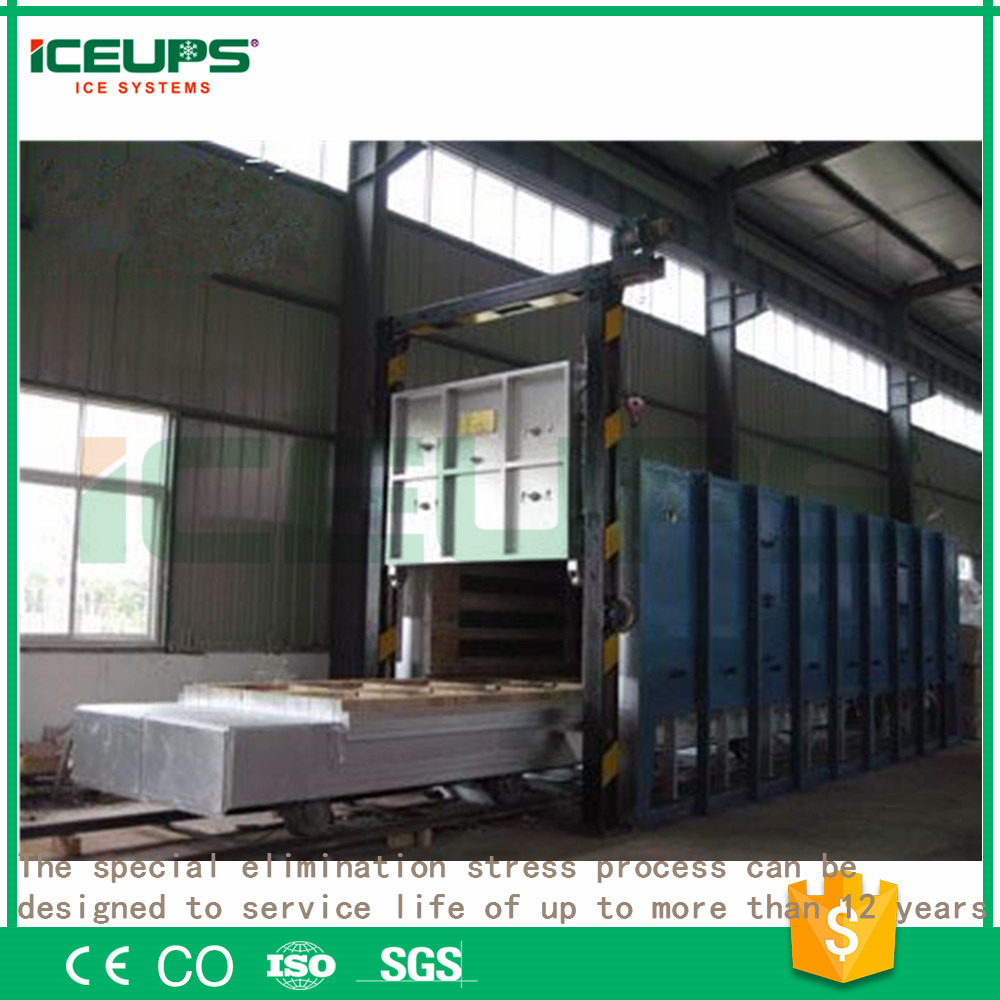

    Ice Evaporators are processed by high temperature annealing,eliminate the internal stress of steel,the

    equipment doesn’t distorted to work for long term under low temperature and low pressure.

    The inner of evaporators is paint handling,so that the flow channel welds permanent styling and never

    produce Refrigerant leak.

    Parts of refrigeration unit are from the world famous brand,more stable quality and superior

    performance, the buyers can find parts in the local markets,so to save significantly the maintenance costs.

    ?KMC-20T

    ?

    The Application Range of ICEUPS ICE Machine Evaporator

    Ice evaporator is the core technology of ice making system.There are lots of distributors and refrigeration

    equipment manufacturers from different countries purchase ICEUPS Ice Evaporators,they configure the

    cooling system by themselves,ICEUPS provide them the relevant technology and help.

    They are applied to preserve the supermarket fresh stable,fresh seafood restaurants,food

    processing,fresh fruit&vegetable,meat etc.keep them fresh longer.

    Flake ice thickness: 1.5~2.8mm, Ice temperature:-7℃.

    Power Supply: 3p-50hz-380v(standard), it also can be other voltage

    200v/220v/400v/415v/440v/460v/480v-50hz/60hz-3p

    Operating condition:Water inlet temperature 18℃,Ambient temperature 25℃,Evaporating

    temperature-22℃,Condensing temperature 40℃。

    Ice Capacity:the actual production of ice will be changed due to the impact of water&ambient

    temperature.

    The data of technical innovation will update,we will reflect them in the quotation solution.

    ?

    ?

    KMC-20T

    KMC-20T

    ?

    KMC-20T?

    ?

    ? The Evaporator is a single entity,separated with the refrigeration system.the design are from

    refrigeration agent and installation engineer.

    ? ICEUPS flake ice evaporator is the stationary vertical design,the inner scraping ice,ice skate rotate ice

    in inner wall of evaporator when motionless.

    ?
